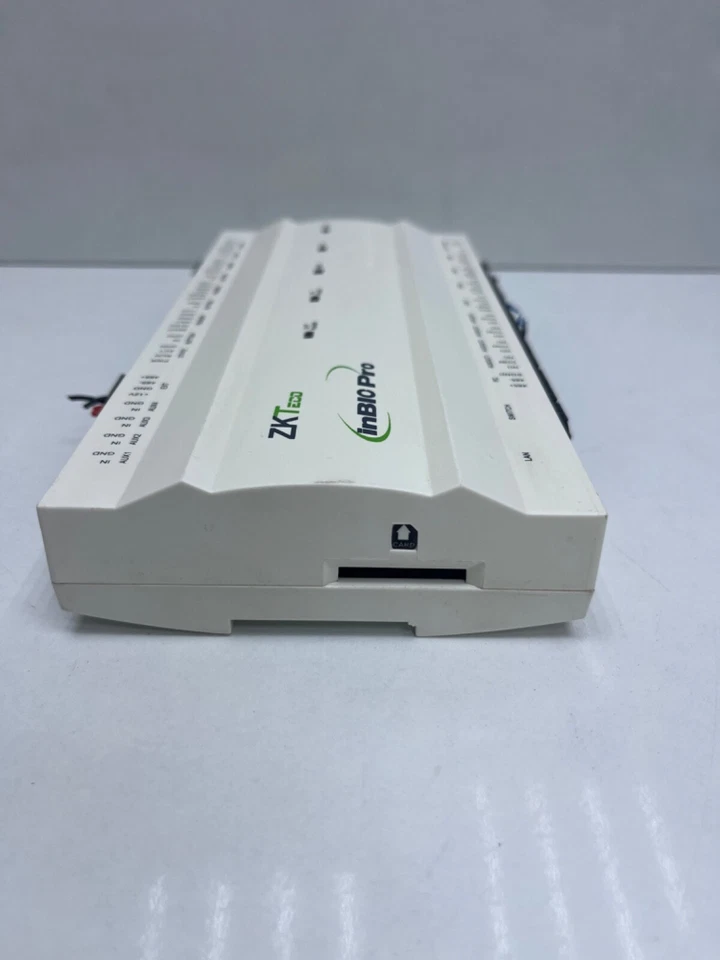

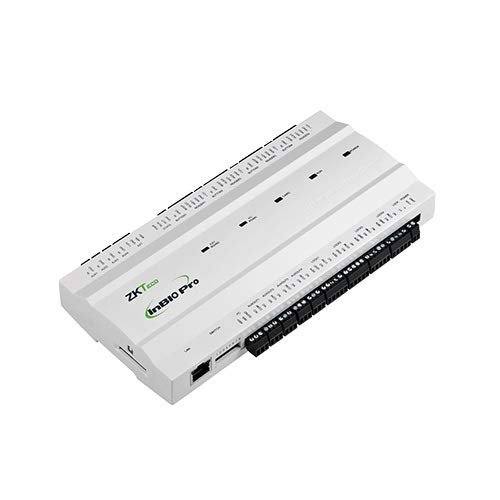

ZKTeco (inBio460 Pro Package B) Four Doors Eight Ways Biometric Access Control Panel

The ZKTeco inBio460 Pro (Package B) is a high-end, IP-based four-door biometric access control panel engineered for advanced, project-oriented security setups in enterprise offices, industrial complexes, hospitals, and government facilities. Unlike standard controllers that require external processing modules, the inBio460 Pro performs lightning-fast on-panel biometric matching natively, storing templates directly on the controller to eliminate network lag. This “Package B” solution arrives fully integrated into a professional, heavy-duty ZKTeco-branded metal box complete with a robust 13.8V dual-channel power supply unit (5A + 1A) and dedicated physical space for a backup battery to maintain 24/7 continuous operations during grid failures. It supports an “Eight Ways” configuration capability via RS-485 interfaces—allowing for both entry and exit authentication across all 4 doors simultaneously—while maintaining 4 additional industry-standard Wiegand ports to accommodate legacy RFID readers, making it a highly adaptive bridge between biometric security and proximity networks.

Key Features

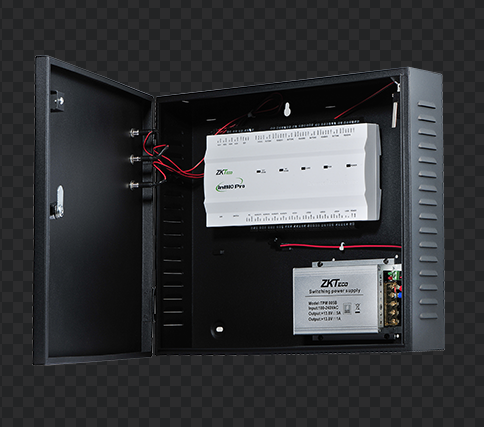

• Complete Package B Assembly: Shipped in a secure SPCC steel enclosure featuring a dual-charging power supply (13.8V/5A + 1A) with integrated battery backup space.

• 4-Door, 8-Way Control Flexibility: Manages full entry and exit logging across 4 distinct physical doors by processing up to 8 advanced RS-485 biometric readers.

• On-Board Biometric Processing: Stores up to 20,000 fingerprint templates and performs decentralized biometric matching directly on the panel’s Linux-based 1.0GHz processor.

• Massive User & Log Capacities: Effortlessly retains up to 100,000 cardholders and records a substantial buffer of up to 500,000 historical event transactions.

• Hybrid Reader Compatibility: Features 8 dedicated RS-485 / OSDP ports for ZKTeco FR-series slave biometric readers alongside 4 independent Wiegand inputs (supporting up to 66-bit data structures).

• Advanced Multi-Authentication Modes: Supports complex user verification workflows blending Fingerprint, RFID Cards, Numeric Passwords, Facials, and Dynamic QR Codes.

• Built-in Security Analytics: Firmware-level support for advanced access policies including Anti-Passback, Multi-Card Opening, First-Card Management, and Duress Password triggers.

• Auxiliary Input/Output Linkages: Outfitted with 4 auxiliary inputs (for smoke detectors or glass break sensors) and 4 Form-C auxiliary relays to trigger localized physical alarms or sirens.

• Native Network Connectivity: Includes a high-speed TCP/IP communication interface for central management using web-based ZKBio CVSecurity software.

• Non-Stop Offline Integrity: Retains all programming data, schedules, and log architectures within internal memory and real-time SD card backups during unexpected network outages.

Conclusion

The ZKTeco inBio460 Pro (Package B) offers a premier, turn-key solution for modern infrastructure access control requiring high-density biometric security. By combining onboard fingerprint matching with a dual-mode reader architecture (RS-485 and Wiegand), it delivers exceptional speed, security, and hardware versatility across four doors. Packed neatly within a rugged, power-backed metal enclosure and ready for advanced web management, it stands as a highly dependable, enterprise-ready cornerstone for around-the-clock physical security management.
