Wi-Tek (WI-SFP10L-10G-20KM-I) – Industrial 10Gbps Single-Mode SFP+ WDM Module

The Wi-Tek WI-SFP10L-10G-20KM-I is an industrial-grade 10Gbps SFP+ optical fiber transceiver module designed for high-speed, long-distance network connectivity over single-mode fiber. It supports data transmission of up to 10Gbps over distances of up to 20 km, making it suitable for fiber uplinks, enterprise networks, data communication infrastructure, surveillance networks, and industrial networking applications.

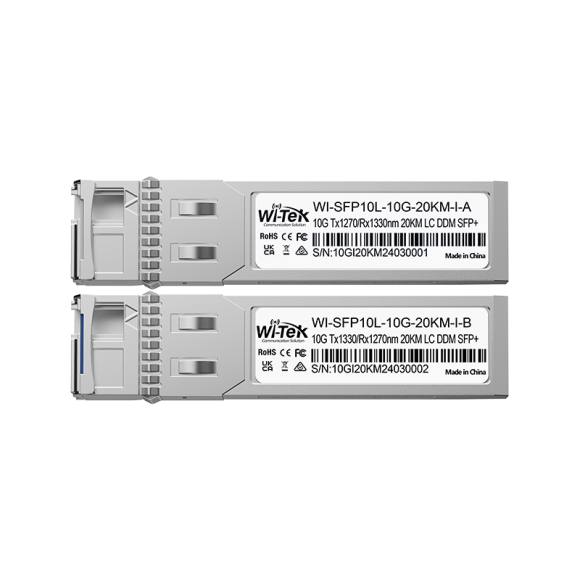

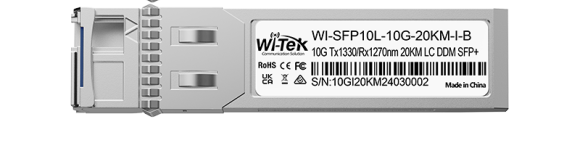

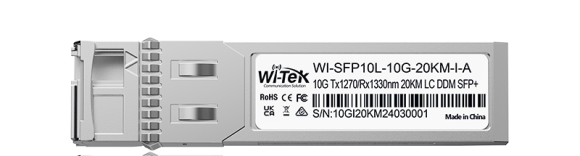

The module uses WDM single-fiber technology with a Simplex LC connector, allowing transmission and reception over a single optical fiber using different wavelengths. The A and B modules operate with complementary 1270nm/1330nm transmit and receive wavelengths and are designed to work as a matched pair.

Designed for demanding environments, the WI-SFP10L-10G-20KM-I supports an operating temperature range of -40°C to +85°C. It features hot-pluggable SFP+ MSA compatibility, plug-and-play installation, low power cons
umption of less than or equal to 1W, and Digital Diagnostic Monitoring (DDM) for monitoring optical operating parameters.

Key Specifications

• Data Rate: Up to 10Gbps
• Transmission Distance: Up to 20 km
• Fiber Type: Single-mode fiber (SMF)
• Connector: Simplex LC
• Technology: WDM / Single-fiber
• Wavelength: Tx 1270nm / Rx 1330nm or Tx 1330nm / Rx 1270nm
• Transmitter: DFB
• Receiver: PIN/TIA
