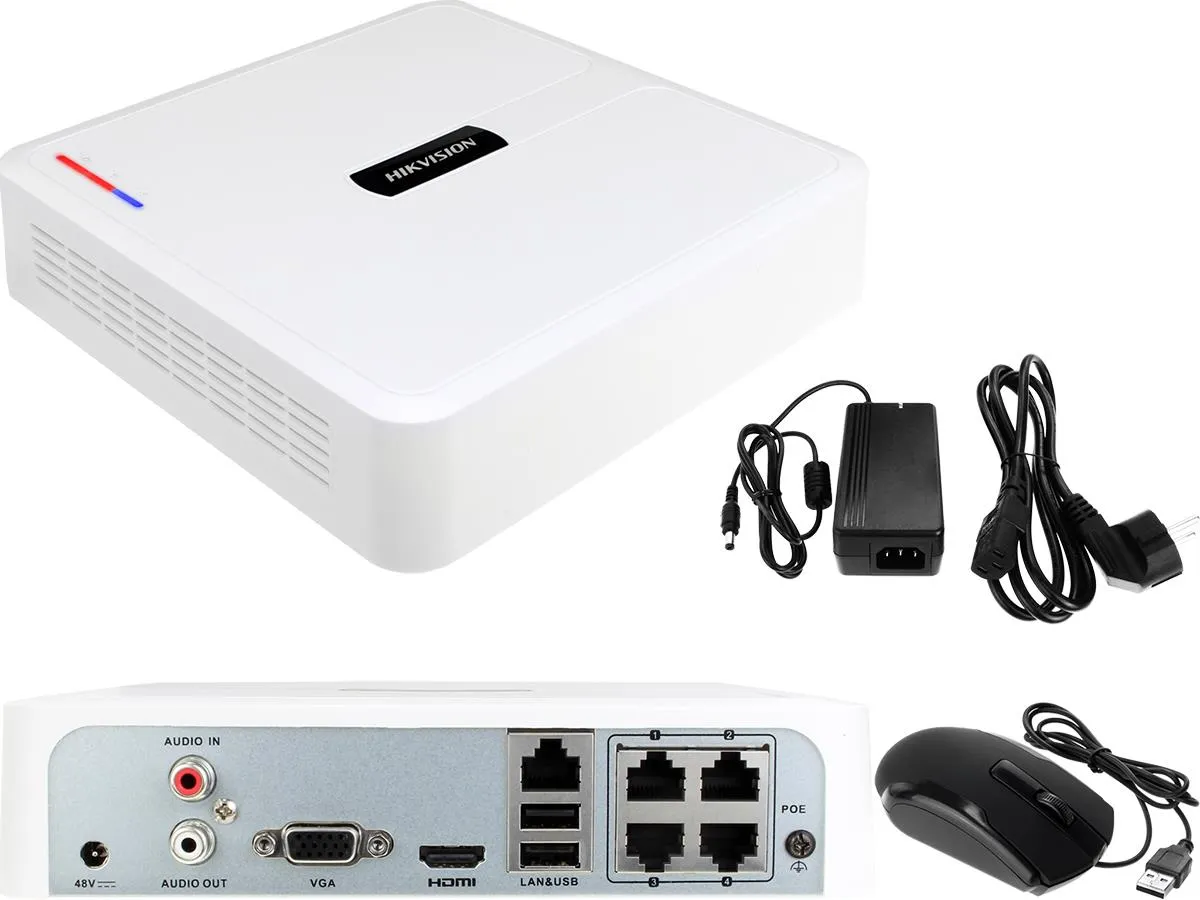

Hikvision (HWN-2104H-4P) Series Network Video Recorder

The Hikvision HWN-2104H-4P is a compact, highly efficient 4-channel Mini 1U Network Video Recorder (NVR) belonging to Hikvision’s specialized HiWatch budget-professional series. Tailored specifically for small business storefronts, residential properties, offices, and localized security points, this NVR centralizes IP camera management without requiring an overly complex hardware footprint.

The defining trait of the “4P” model is its integrated 4-port Power over Ethernet (PoE) network switch, which allows installers to connect compatible IP cameras directly to the back panel to transmit both power and multi-megapixel data over a single network cable. Outfitted with smart network decoding protocols, an administrative suite, and seamless mobile syncing, it serves as a robust, cost-effective hub for managing high-definition modern surveillance networks.

Key Features

• 4-Channel High-Definition Input: Supports the simultaneous connection and centralized management of up to 4 independent IP network cameras over a localized area network.

• Up to 6 MP Recording Support: Features an advanced hardware processing engine that effortlessly records incoming camera streams at crisp resolutions up to 6 Megapixels.

• Integrated 4-Port PoE Switch: Outfitted with 4 independent, plug-and-play 10/100 Mbps RJ45 PoE interfaces supporting IEEE 802.3af/at standard delivery up to a total budget of 36W.

• Next-Gen H.265+ Compression: Employs Hikvision’s ultra-efficient H.265+ smart video encoding codecs, drastically dropping network bandwidth use and cutting hard drive storage footprint by up to 75%.

• Optimized Data Throughput Rates: Processes a stable 40 Mbps incoming bandwidth capacity coupled with a 60 Mbps outgoing bandwidth stream, guaranteeing smooth live views and lag-free remote access.

• Simultaneous Video Outputs: Features native HDMI and VGA video out lines capable of outputting simultaneous monitor configurations at up to 1080p Full HD ($1920 \times 1080$) resolution.

• High-Capacity SATA Core Interface: Houses one internal 3.5-inch SATA hard drive slot supporting a single standard storage disk with an archive capacity up to 6 TB.

• Synchronous Channel Decoupling Playback: Decodes video fluidly across multiple channels during localized review playback, comfortably rendering up to 4-ch at 1080p or 2-ch at 4 MP resolution concurrently.

• Smart Search & Perimeter Analytics: Communicates directly with edge smart cameras to enable smart searches across specific motion grids, virtual line crossings, and localized intrusion zones.

• Hik-Connect Mobile Cloud P2P: Pairs instantly with the Hik-Connect mobile app and web clients via QR code scanning for fluid remote live monitoring, quick log checks, and immediate event push notifications.

Conclusion

The Hikvision HWN-2104H-4P Series NVR stands as an exceptional, highly dependable foundation for building out or maintaining a streamlined 4-channel security network. By marrying multi-megapixel 6 MP video capabilities, extreme H.265+ data optimization, and a built-in 4-port PoE power grid into a single, low-profile desktop chassis, it entirely bypasses the need for costly external switches or complicated power layouts. Its straightforward setup architecture and complete integration into the mobile cloud ecosystem make it a thoroughly professional, hassle-free centerpiece for modern around-the-clock facility monitoring.
