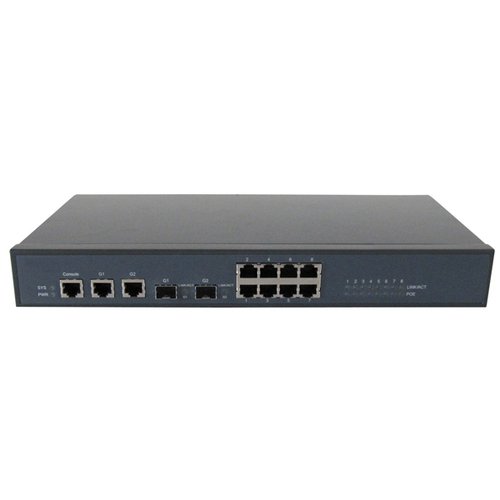

Hikvision (DS-3D2208P) 8 Port Multiservice Gigabit Ethernet PoE Switch

The Hikvision DS-3D2208P is an enterprise-grade, high-performance 8-port multiservice managed Layer 2 PoE Ethernet switch specifically engineered for high-bandwidth IP video surveillance networks. Designed to act as a resilient distribution or edge node, this switch effortlessly handles demanding multi-megapixel camera streams without packet loss or video jitter.

The DS-3D2208P features a powerful non-blocking switching fabric and an advanced hardware core that supports flexible combinations of Fast Ethernet downstream ports and Gigabit uplink interfaces. It provides robust Power over Ethernet (PoE/PoE+) capabilities across all delivery ports, automatically regulating wattage to match connected IP cameras, access control terminals, or wireless bridges. Housed in a durable, compact metal chassis, it implements a comprehensive layer of network management, quality of service (QoS), and advanced cyber-security features to keep critical security data streams safely moving at full speed.

Key Features

• High-Capacity Port Configuration: Outfitted with 8× Fast Ethernet downstream ports, 2× 10/100/1000 Mbps Gigabit Ethernet ports, 2× Gigabit SFP optical multiplex ports, and 1× dedicated Console management port.

• Robust 64Gbps Backplane Fabric: Engineered with a high-bandwidth 64 Gbps switching backplane capacity and non-blocking architecture, ensuring full-speed, lag-free video stream forwarding.

• Flexible 802.3af/at PoE Delivery: Fully supports the IEEE 802.3af standard across all 8 ports, or the high-power IEEE 802.3at (PoE+) standard on up to 5 ports simultaneously, pushing up to 30W per port.

• Long-Range Optical Transmission: The uplink Gigabit SFP slots support high-performance fiber-optic modules capable of extending video network backhauls across distances up to 120 km.

• Advanced Multi-Service Management: Fully manageable through standard network interfaces, including Console, Telnet, a user-friendly Web GUI, and SNMP v1/v2c/v3 platforms.

• Hardened Network Access Control: Outfitted with enterprise-grade security protocols, including IEEE 802.1x authentication, Port-MAC-IP binding, and RADIUS integration to block unauthorized physical connections.

• Proactive ARP Spoofing Prevention: Features specialized Dynamic ARP Inspection (DAI) and ARP invasion detection mechanisms to effectively stop malicious ARP cheating and network interception attempts.

• Intelligent Broadcast Storm Control: Automatically detects, monitors, and controls broadcast storms and IGMP Snooping packets, preventing flooding and optimizing traffic for IP multicast video feeds.

• Granular QoS & Flow Management: Supports strict Quality of Service (QoS) rule mapping and port-based rate limitations in minimum steps of 64K, prioritizing critical security camera feeds over standard data traffic.

• Resilient Spanning Tree Protocols: Integrates standard Layer 2 redundancy frameworks, including IEEE 802.1D STP, 802.1w RSTP, and 802.1s MSTP, ensuring rapid network path recovery if a physical link is severed.

Conclusion

The Hikvision DS-3D2208P 8-Port Multiservice Gigabit Ethernet PoE Switch represents an outstanding, highly secure core utility for running dense and demanding commercial IP surveillance networks. By unifying ultra-fast Gigabit uplink paths, flexible 30W PoE+ power delivery, and an enterprise-tier suite of Layer 2 management tools into one robust chassis, it clears the way for flawless high-definition data transmission. Its advanced cyber defense mechanics, storm-control safeguards, and smart QoS engines make it a thoroughly dependable, professional foundation for establishing rock-solid security infrastructure.
