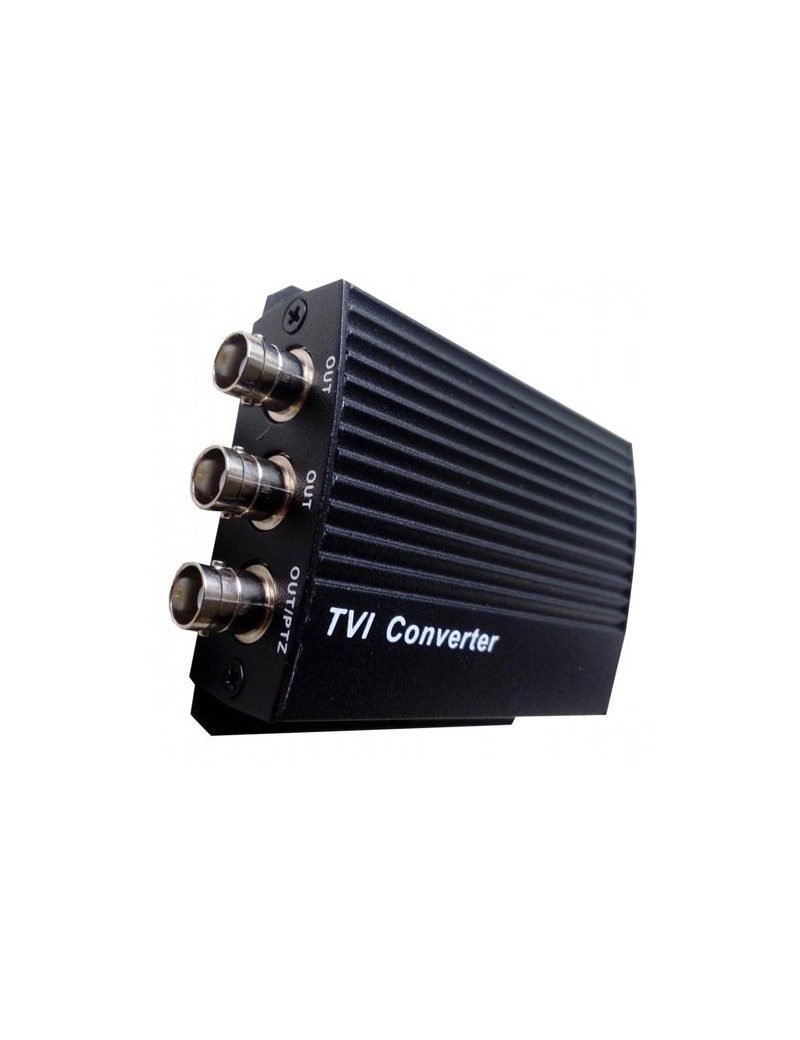

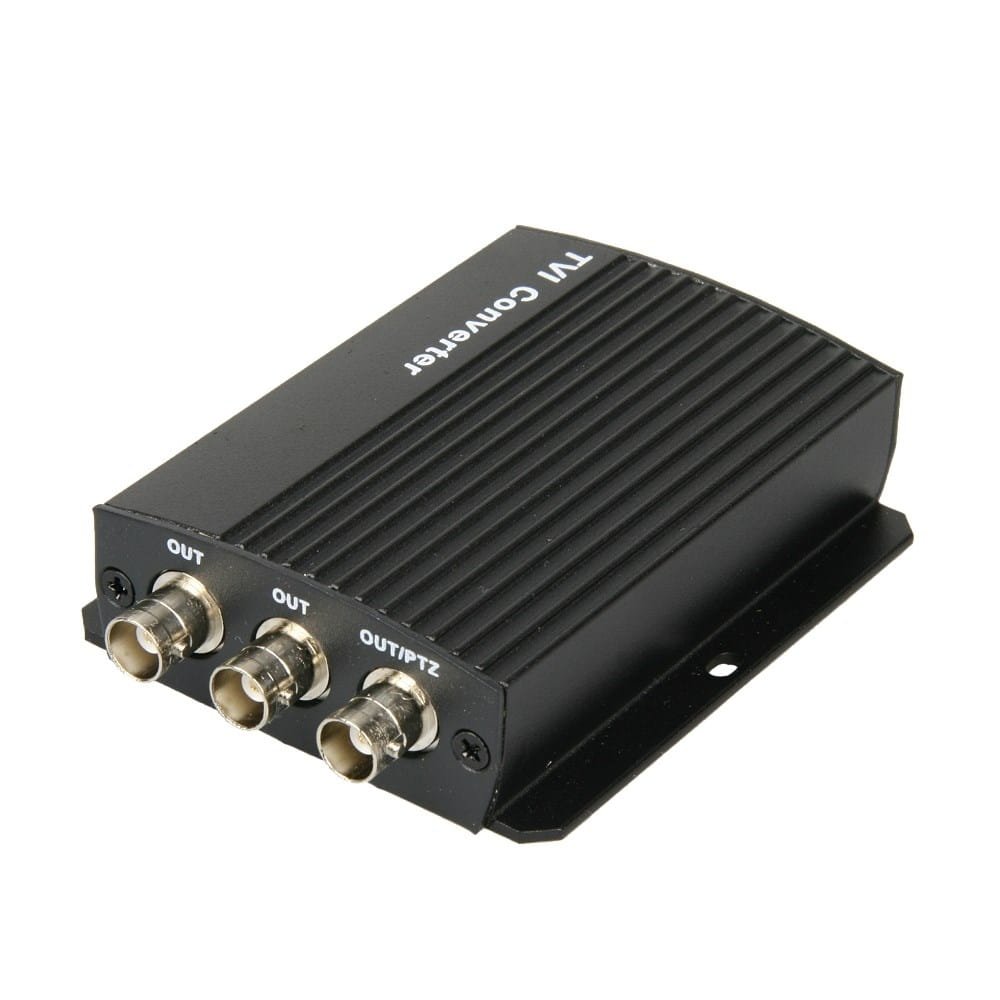

Hikvision (DS-1H31) HDTVI Video Distributor 1 Input 3 Output TVI Splitter

The Hikvision DS-1H31 HDTVI Distributor is a reliable video signal splitter designed to distribute one HDTVI video input into three simultaneous outputs without signal loss. Ideal for CCTV surveillance systems, it supports HDTVI 2.0 standards and provides stable, high-quality video transmission for DVRs, monitors, and matrix systems. Compact and durable, it is suitable for professional security installations.

Key Features

• Distributes the inputting 1-ch HDTVI video signal to 3-ch signal output.
• Connectable to terminal devices such as HDTVI DVR and matrix.
• Supports all the HDTVI standards, including V2.0 video standard signal.
• Supports 1-ch coaxitron output.
• Lossless and uncompressed transmission.
• Satisfies the requirements of working in high or low temperature.
• Up to 100000 hours of mean time between failures.

Specifications

• Model: DS-1H31
• Video Input: 1 Channel HDTVI
• Video Output: 3 Channels HDTVI
• Interface: BNC
• Supported Resolution: 1080P / 720P
• Power Supply: 12V DC, 1A
• Power Consumption: ≤ 8W
• Operating Temperature: -30°C to +75°C
• Dimensions: 50 × 30 × 25 mm
